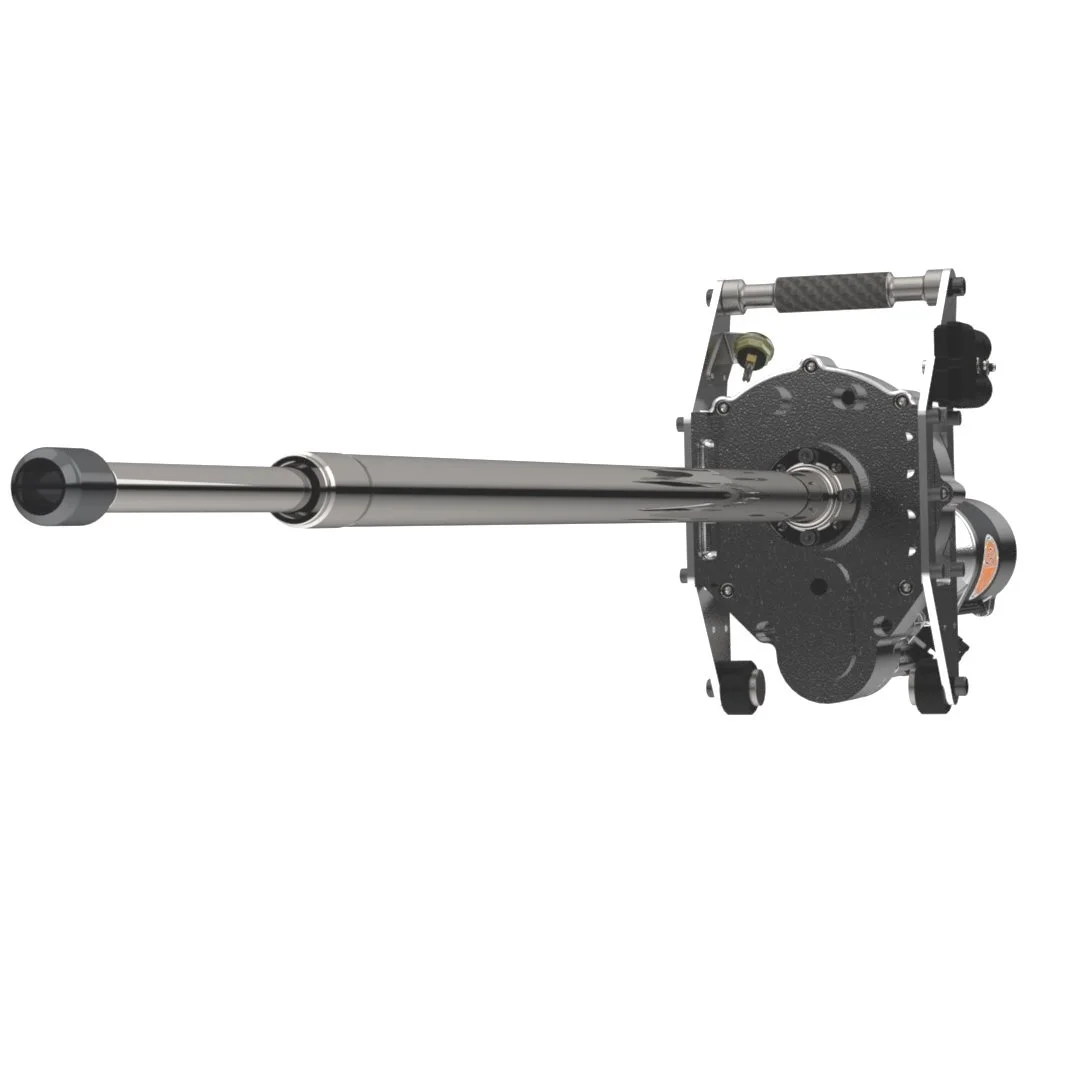

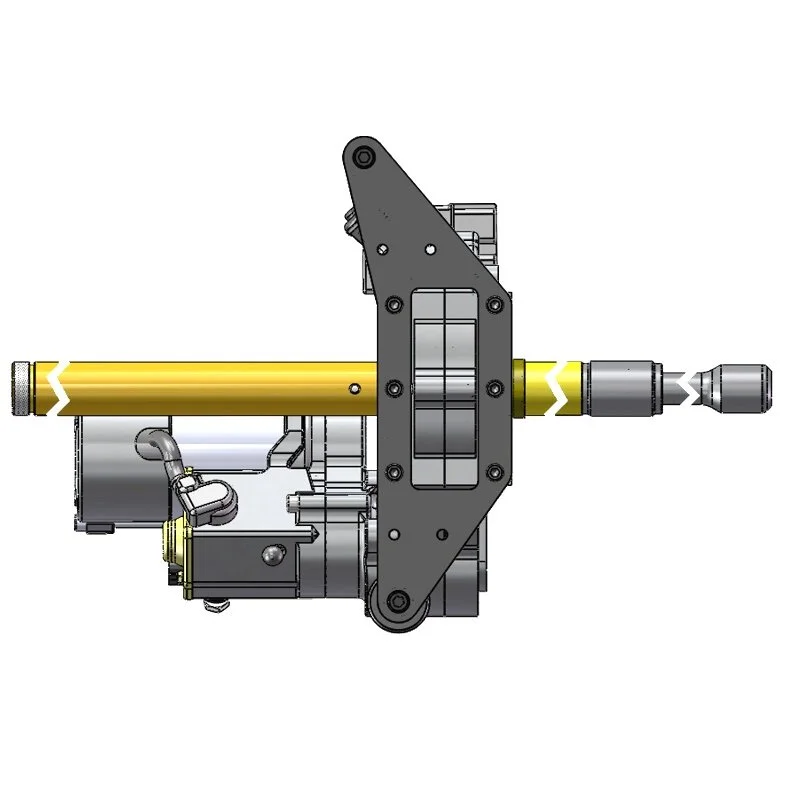

GP2 and Formula 2 - Off Car Starter Motor
Off Car Starter designed up to 24 Volts.
Compatible with GP2 2011 onwards and Formula 2
GP2 and Formula 2 Off Car Starter Motor, designed, developed and manufactured in-house at our Ark Racing Limited., It is made to the highest standards using high-grade steel and aluminium.
Developed and made to professional motorsport standards, providing excellent starting performance, endurance and reliability for today’s driver. With a power rating of 2.0 kW (Japanese International Standard), (12 Volts - 24 Volts).
Suitable for: This Ark Racing Off Car Starter is not only suitable for *GP2 (2011 onwards) but also suitable for F2
Specification:
SYSTEM OF ENGAGEMENT: Positive Shift Drive
RATED TIME: 30 Sec
NOMINAL SYSTEM VOLTAGE: 12V
FREE SPIN (Unloaded condition) Input Voltage 11.5V
Current 100 AMPS STARTER SPEED 4000 RPM MIN
RUN DOWNTIME: 3 sec, min
STALL TORQUE: Torque 18.7 N-m (1.7 kgf - m) MIN
Current 800 AMPS MAX Voltage: 2.4V
PULL-IN VOLTAGE: 8V MAX AT 20C
PULL-IN CURRENT: 50 AMPS MAX
HOLD-IN CURRENT: 15 AMPS MAX
DROP-OUT VOLTAGE: 4V MAX AT 20C
ENGAGEMENT SPRING CHECK VOLTAGE: 8V AT 20C
OPERATING TEMPERATURE RANGE: -30C to +120C
The main cable resistance from the battery to the starter, including earth return, shall not exceed 0.002 OHMS at 20C.
The wiring harness feeding the solenoid winding, including all operating switches shall have a resistance no greater than 0.05 OHMS at 20C.
The recommended (12V Nom) Battery for this starter is one which has an initial terminal voltage of 7.6V when supplying a current of 400 AMPS at 20C.
MATERIAL: Steel Casing /Aluminium Adapter Plate
Kilowatts: 2.0 kW
VOLTAGE: 12 Volts
Direction: Clockwise / Anti-Clockwise
APPLICATION NOTES:
Signal Cable to terminal 50 MUST BE 2.5 Sq.mm CSA (Minimum Cross-Sectional Arear) Including supply to the starter switch.
Main Cable to terminal 30 (8mm stud) MUST BE:
*25 Sq.mm CSA OR GREATER (For Cable Lengths Less than 1.5 metres) OR
*35 Sq.mm CSA OR GREATER ( For Cable Lengths greater than 1.5 metres)
Battery CCA (Cold Cranking Capability) MUST BE AT LEAST 650A For ALL Applications.
If 24V is being used then two batteries of the above specification to be wired in series for maximum performance.
Ark Racing Limited ONLY USES High-Quality Denso / Nippon Denso parts.
LEGAL: All designs and products are the Intellectual Property of Ark Racing Ltd. Not for distribution without prior written permission.
We also make other variants of “Off Car Starter” including:
Arrows A11B Off Car Starter | ERA Off Car Starter Motor | Ferrari Off Car Starter Motor | Jordan 1991 Air Starter Adaptation | Jordan EJ195 Off Car Starter Motor | Jordan EJ198 Off Car Starter Motor | Lancia D50 (the 1950s) Off Car Starter | 11T Pinion Larousse Lola Off Car Starter Motor | Maserati Off Car Starter Motor | Mclaren MP4-6 Off Car Starter Motor | Minardi M198 Off Car Starter | Penske PC20 Indy Car Off Car Starter Motor | Sauber SM95 F1 Off Car Starter Motor | Tyrell 012 Off Car Starter Motor | Osella F1 Off Car Starter Motor | Benetton b197 - b198 Off Car Starter Motor | Benetton b192/b194 Off Car Starter Motor | Indy Mk2 Universal Starter Motor Kit | Ferrari Dino Off-Car Starter | Lotus 98T Off Car Starter
Complementary components include Battery Trolleys
If you cannot find what you need then please contact us, we can create a solution if required.
